High Performance Live Center Sets
High Performance Live Center Sets
South Bend brand high performance live center sets are the best center sets in the industry, made with pride and uncompromising quality.
- Shafts are made of alloy steel and vacuum heat treated to HRC60° +/- 1° for high rigidity and durability
- Centers use a combination of roller bearings, thrust ball bearings and ball bearings
- These live centers are suited for CNC machining and high speed turning
- Waterproof design
- Tips have 60° centers

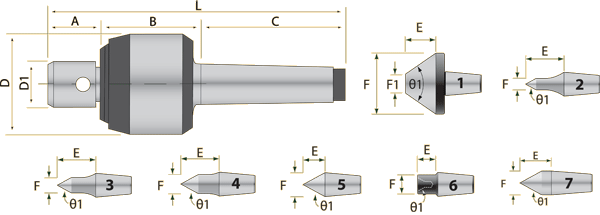

Imperial Measurements - Bodies
| Model# | Morse Taper | A | B | C | D | D1 | L | Gross Weight lbs |
|---|---|---|---|---|---|---|---|---|
| SB1281 | MT2 | 0.91" | 1.52" | 2.58" | 1.26" | 0.787" | 5.15" | 1.85 lbs. |
| SB1282 | MT3 | 1.24" | 2.35" | 3.19" | 2.28" | 1.373" | 6.98" | 5.35 lbs. |
| SB1283 | MT4 | 1.04" | 2.65" | 4.03" | 2.99" | 1.373" | 8.17" | 8.80 lbs. |
Imperial Measurements - Points
| Model Number | Tip Style | ||||||
|---|---|---|---|---|---|---|---|
| SB1281 | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
| E | 0.828" | 0.77" | 0.79" | 0.77" | 0.44" | 0.537" | n/a |
| F | 1.26" | 0.237" | 0.316" | 0.395" | 0.5" | 0.394" | n/a |
| T1 | 70° | 60° | 60° | 60° | 60° | 60° | n/a |
| SB1282 | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
| E | 1.065" | 0.835" | 0.835" | 0.85" | 0.854" | n/a | 0.856" |
| F | 1.781" | 0.237" | 0.316" | 0.395" | 0.473" | n/a | 0.613" |
| F1 | 0.796" | n/a | n/a | n/a | n/a | n/a | n/a |
| T1 | 60° | 60° | 60° | 60° | 60° | n/a | 60° |
| SB1283 | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
| E | 1.065" | 0.835" | 0.835" | 0.85" | 0.854" | n/a | 0.856" |
| F | 1.781" | 0.237" | 0.316" | 0.395" | 0.473" | n/a | 0.613" |
| F1 | 0.796" | n/a | n/a | n/a | n/a | n/a | n/a |
| T1 | 60° | 60° | 60° | 60° | 60° | n/a | 60° |
Metric Measurements - Bodies
| Model# | Morse Taper | A | B | C | D | D1 | L | Gross Weight kgs |
|---|---|---|---|---|---|---|---|---|
| SB1281 | MT2 | 23.11mm | 38.61mm | 65.53mm | 32mm | 19.99mm | 130.81mm | 0.84kg |
| SB1282 | MT3 | 31.5mm | 59.69mm | 81.03mm | 57.91mm | 34.87mm | 177.29mm | 2.43kg |
| SB1283 | MT4 | 26.42mm | 67.31mm | 102.36mm | 75.95mm | 34.87mm | 207.52mm | 3.99kg |
Metric Measurements - Points
| Model Number | Tip Style | ||||||
|---|---|---|---|---|---|---|---|
| SB1281 | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
| E | 21.03mm | 19.56mm | 20.07mm | 19.56mm | 11.18mm | 13.64mm | n/a |
| F | 32mm | 6.02mm | 8.03mm | 10.03mm | 12.7mm | 10.01mm | n/a |
| T1 | 70° | 60° | 60° | 60° | 60° | 60° | n/a |
| SB1282 | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
| E | 27.05mm | 21.21mm | 21.21mm | 21.59mm | 21.69mm | n/a | 21.74mm |
| F | 45.24mm | 6.02mm | 8.03mm | 10.03mm | 12.01mm | n/a | 15.57mm |
| F1 | 20.22mm | n/a | n/a | n/a | n/a | n/a | n/a |
| T1 | 60° | 60° | 60° | 60° | 60° | n/a | 60° |
| SB1283 | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
| E | 27.05mm | 21.21mm | 21.21mm | 21.59mm | 21.69mm | n/a | 21.74mm |
| F | 45.24mm | 6.02mm | 8.03mm | 10.03mm | 12.01mm | n/a | 15.57mm |
| F1 | 20.22mm | n/a | n/a | n/a | n/a | n/a | n/a |
| T1 | 60° | 60° | 60° | 60° | 60° | n/a | 60° |
