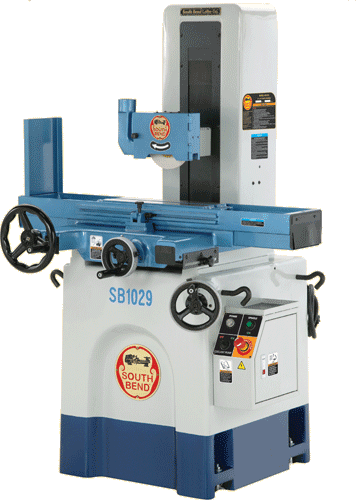

Model SB1029
6" x 18" Surface Grinder
This machine was created specifically for use in tool-rooms of machine shops. All
cast-iron construction with outstanding components. Built in the true South Bend
fashion of precision and high quality. You will not be disappointed!
|
Specifications:
- Table Size: 5-3/4" x 17-3/4"
- Longitudinal Travel: 19-1/4"
- Cross Travel: 7-1/2"
- No. of T-Slots: 1
- Size of T-Slots: 5/8" (for 1/2" stud)
- Min. Distance Surface to Spindle Center: 2-1/10"
- Max. Distance Surface to Spindle Center: 19-1/4" (490mm)
- Spindle Speed: 3450 RPM
- Motor Size: 1.5 HP, 3-Phase
- Motor Voltage: 220V / 440 V / 60Hz pre-wired to 220V
- Grinding Wheel Size: 7" x 1/2" x 1-1/4"
- Vertical Feed Handwheel per Revolution: 0.050"
- Vertical Feed Handwheel Graduation: 0.0002" (0.005mm)
- Cross Feed Handwheel per Revolution: 0.2" (5mm)
- Cross Feed Handwheel Graduation: 0.0005"
- Floor to Table Height: 39-3/4"
- Overall Height: 67-3/4"
- Machine Footprint (with table dimensions): 64-1/2" x 39-1/2"
- Machine Footprint (stand only): 26-1/2" x 28"
- Approximate Shipping Weight: 2,082 lbs.
- Net Machine Weight: 1,912 lbs.
- Adjustable Dust Port: 2-1/2"
- Spindle arbor: 7.5° taper (from center line)
|
Standard Accessories:
- Grinding wheel
- Wheel flange
- Wheel guard
- Toolbox and instruction manual
- Stand
- Allen-Bradley electrical components
- South Bend brass nameplates (two)
- Tool tray
- (4) Lifting Hooks
- Oil Pump
- Diamond dressing tool with base
- Balancing arbor
Features:
- Japanese NSK bearings
- Precision hand scraped ways by craftsmen that have over 30 years scraping
experience!
- Precision ball slideways for super smooth and precise operation - a total joy to
feel the table of this machine to glide so nicely
- Stand built from one-piece heavy-duty cast-iron casting
- Constant-flow pressurized lubrication system
- Excellent South Bend uncompromising quality
