Model SB1023

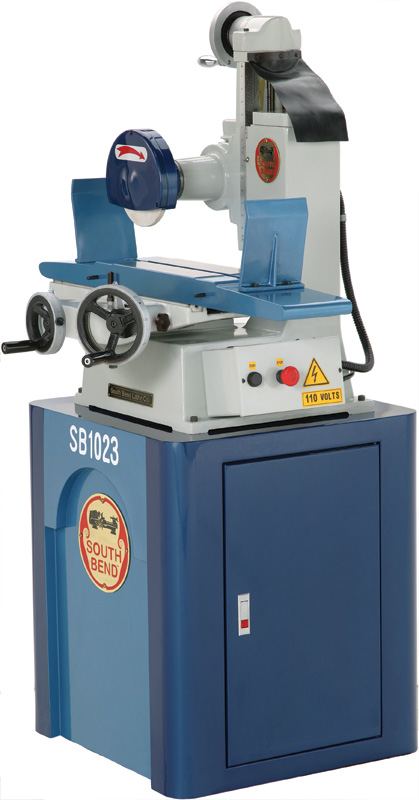

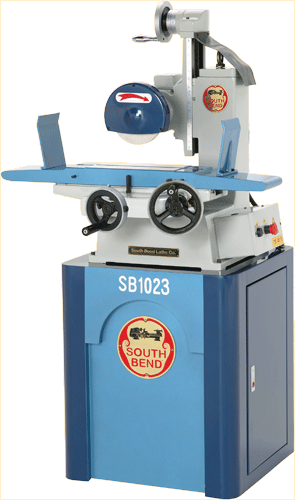

6" x 12" Surface Grinder
This machine was designed by us specifically for the small shop. Although perfect for the home shop, this surface grinder can easily do duty in a machine shop that requires small one-off part processing that would otherwise tie up a larger machine unnecessarily.
|
Specifications:
- Table Size: 6" x 12-1/8"
- Longitudinal Travel: 14-1/4"
- Cross Travel: 8"
- No. of T-Slots: One
- Size of T-Slots: 1/2" (sized for 3/8" stud)
- Min. Distance Surface to Spindle Center: 2-5/8"
- Max. Distance Surface to Spindle Center: 11-7/8"
- Spindle Speed: 3450 RPM
- Spindle Motor: 3/4 HP, Single-Phase
- Motor Voltage: 110/220V/60Hz pre-wired to 110V
- Grinding Wheel Size: 7" x 1-1/4" x 1/2"
- Vertical Feed Handwheel per Graduation: 0.0005" (0.012mm)
- Cross Feed Handwheel per Graduation: 0.001" (0.025mm)
- Floor to Table Height: 39-15/16"
- Overall Height: 56-5/8" to 66"
- Machine Footprint (with table dimensions): 50-1/2" x 36"
- Machine Footprint (stand only): 24" x 24"
- Approximate Shipping Weight: 690lbs.
- Net Machine Weight: 540 lbs.
- Spindle arbor: 5.5° taper (from center line)
|
Standard Accessories:
- Grinding wheel
- Wheel flange
- Wheel guard
- Toolbox and instruction manual
- Stand
- Allen-Bradley electrical components
- South Bend brass nameplates
- Storage cabinet
- Diamond dressing tool with base
- Balancing arbor
Features:
- Swedish SKF bearings
- Steel ball slideways for super smooth and precise operation
- Excellent South Bend uncompromising quality
