Home > Accessories > Live Centers > High Peformance Live Center Sets
South Bend brand high performance live center sets are the best center sets in the
industry, made with pride and uncompromising quality.
- Shafts are made of alloy steel and vacuum heat treated to HRC60° +/- 1°
for high rigidity and durability
- Centers use a combination of roller bearings, thrust ball bearings and ball bearings
- These live centers are suited for CNC machining and high speed turning
- Waterproof design
- Tips have 60° centers

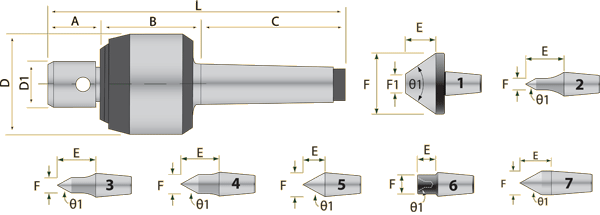

Imperial Measurements - Bodies
|
Model#
|
Morse Taper
|
A
|
B
|
C
|
D
|
D1
|
L
|
Gross Weight lbs
|
|
SB1281
|
MT2
|
0.91"
|
1.52"
|
2.58"
|
1.26"
|
0.787"
|
5.15"
|
1.85
lbs.
|
|
SB1282
|
MT3
|
1.24"
|
2.35"
|
3.19"
|
2.28"
|
1.373"
|
6.98"
|
5.35
lbs. |
|
SB1283
|
MT4
|
1.04"
|
2.65"
|
4.03"
|
2.99"
|
1.373"
|
8.17"
|
8.80
lbs. |
Imperial Measurements - Points
|
Model Number
|
Tip Style
|
|
SB1281
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
|
E
|
0.828"
|
0.77"
|
0.79"
|
0.77"
|
0.44"
|
0.537"
|
n/a
|
|
F
|
1.26"
|
0.237"
|
0.316"
|
0.395"
|
0.5"
|
0.394"
|
n/a
|
|
Θ1
|
70°
|
60°
|
60°
|
60°
|
60°
|
60°
|
n/a
|
|
SB1282
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
|
E
|
1.065"
|
0.835"
|
0.835"
|
0.85"
|
0.854"
|
n/a
|
0.856"
|
|
F
|
1.781"
|
0.237"
|
0.316"
|
0.395"
|
0.473"
|
n/a
|
0.613"
|
|
F1
|
0.796"
|
n/a
|
n/a
|
n/a
|
n/a
|
n/a
|
n/a
|
|
Θ1
|
60°
|
60°
|
60°
|
60°
|
60°
|
n/a
|
60°
|
|
SB1283
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
|
E
|
1.065"
|
0.835"
|
0.835"
|
0.85"
|
0.854"
|
n/a
|
0.856"
|
|
F
|
1.781"
|
0.237"
|
0.316"
|
0.395"
|
0.473"
|
n/a
|
0.613"
|
|
F1
|
0.796"
|
n/a
|
n/a
|
n/a
|
n/a
|
n/a
|
n/a
|
|
Θ1
|
60°
|
60°
|
60°
|
60°
|
60°
|
n/a
|
60°
|
Metric Measurements - Bodies
|
Model#
|
Morse Taper
|
A
|
B
|
C
|
D
|
D1
|
L
|
Gross Weight kgs
|
|
SB1281
|
MT2
|
23.11mm |
38.61mm |
65.53mm |
32mm |
19.99mm |
130.81mm |
0.84kg
|
|
SB1282
|
MT3
|
31.5mm |
59.69mm |
81.03mm |
57.91mm |
34.87mm |
177.29mm |
2.43kg
|
|
SB1283
|
MT4
|
26.42mm |
67.31mm |
102.36mm |
75.95mm |
34.87mm |
207.52mm |
3.99kg
|
Metric Measurements - Points
|
Model Number
|
Tip Style
|
|
SB1281
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
|
E
|
21.03mm
|
19.56mm
|
20.07mm
|
19.56mm
|
11.18mm
|
13.64mm
|
n/a
|
|
F
|
32mm
|
6.02mm
|
8.03mm
|
10.03mm
|
12.7mm
|
10.01mm
|
n/a
|
|
Θ1
|
70°
|
60°
|
60°
|
60°
|
60°
|
60°
|
n/a
|
|
SB1282
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
|
E
|
27.05mm
|
21.21mm
|
21.21mm
|
21.59mm
|
21.69mm
|
n/a
|
21.74mm
|
|
F
|
45.24mm
|
6.02mm
|
8.03mm
|
10.03mm
|
12.01mm
|
n/a
|
15.57mm
|
|
F1
|
20.22mm
|
n/a
|
n/a
|
n/a
|
n/a
|
n/a
|
n/a
|
|
Θ1
|
60°
|
60°
|
60°
|
60°
|
60°
|
n/a
|
60°
|
|
SB1283
|
1
|
2
|
3
|
4
|
5
|
6
|
7
|
|
E
|
27.05mm
|
21.21mm
|
21.21mm
|
21.59mm
|
21.69mm
|
n/a
|
21.74mm
|
|
F
|
45.24mm
|
6.02mm
|
8.03mm
|
10.03mm
|
12.01mm
|
n/a
|
15.57mm
|
|
F1
|
20.22mm
|
n/a
|
n/a
|
n/a
|
n/a
|
n/a
|
n/a
|
|
Θ1
|
60°
|
60°
|
60°
|
60°
|
60°
|
n/a
|
60°
|
