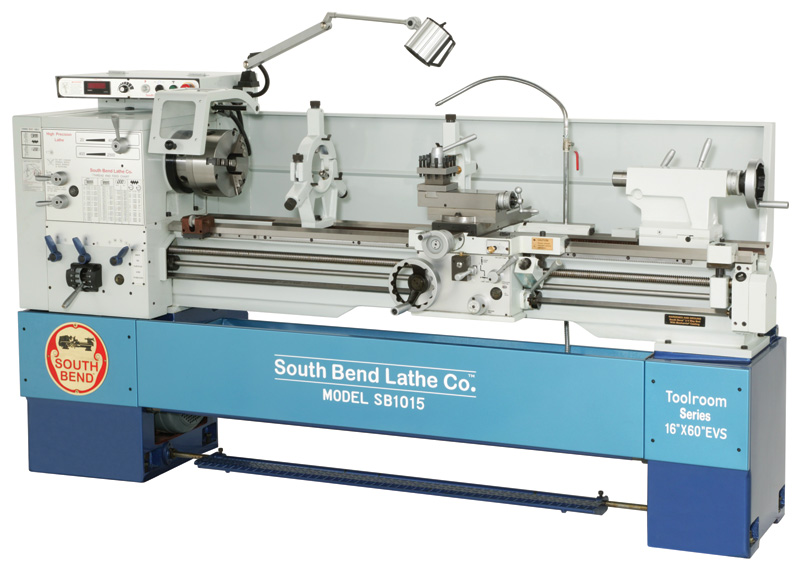

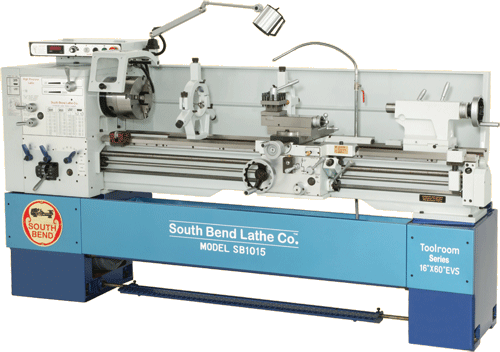

Specifications:
- Swing over bed: 16.14"
- Distance between centers: 60"
- Swing over cross slide: 10.375"
- Swing over gap: 22.95"
- Width of bed: 10.24"
- Spindle nose to gap: 6.5"
- Cross slide travel: 9"
- Compound slide travel: 5.1"
- Spindle nose: D1-6 camlock
- Spindle bore: 2.0625"
- Spindle taper: MT#6
- Spindle speeds: Variable from 20 to 2500 RPM
- Tailstock taper: MT#4
- Tailstock travel: 6"
- Tailstock quill diameter: 2.125"
- Inch thread range: 2 to 72 tpi (45 changes)
- Metric thread range: 0.2 to 14mm (39 changes)
- Modular threads: 0.3 to 3.5 (18 changes)
- Diametral threads: 8 to 44 (21 changes)
- Longitudinal feed range: 0.002 to 0.067 IPR
- Cross feed range: 0.001 to 0.034 IPR
- Number of feed selections: 45
- Coolant motor size: 1/8 HP
- Spindle motor size: 7.5 HP
- SB1014 Voltage: 220V, 3-phase, 60 cycle
- SB1015 Voltage: 440V, 3-phase, 60 cycle
- Machine footprint: 55" x 110"
- Approximate shipping weight: 3800 lbs

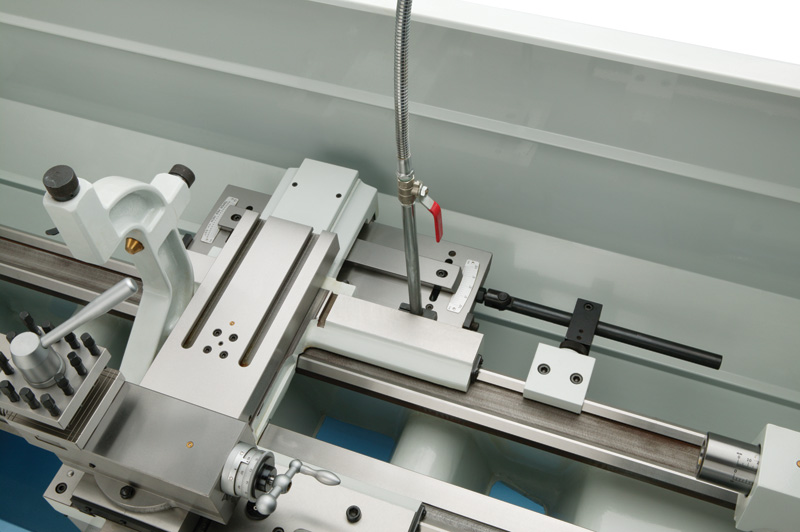

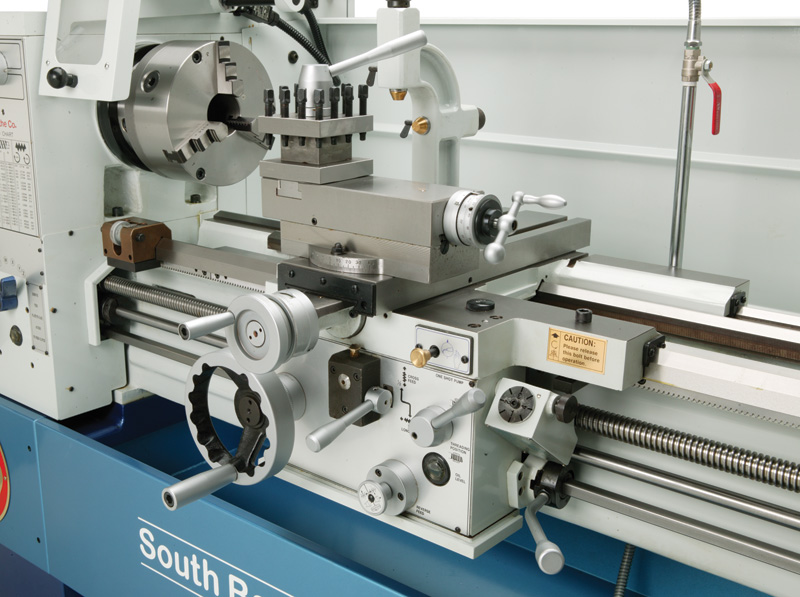

Note: Only difference between SB1014 and SB1015 is the voltage. These South Bend EVS lathes are supplied with an adjustable feed rod clutch and stop collar on the feed rod. This is a great safety feature when working close to the chuck. Set the stop collar so the saddle and tool post are positioned at a safe distance from the chuck and tighten the lock screw. Adjust the feed rod clutch to a low setting. If the carriage comes into contact with the collar, the clutch slips, saving your machine from a serious crash.
|
Standard Equipment:

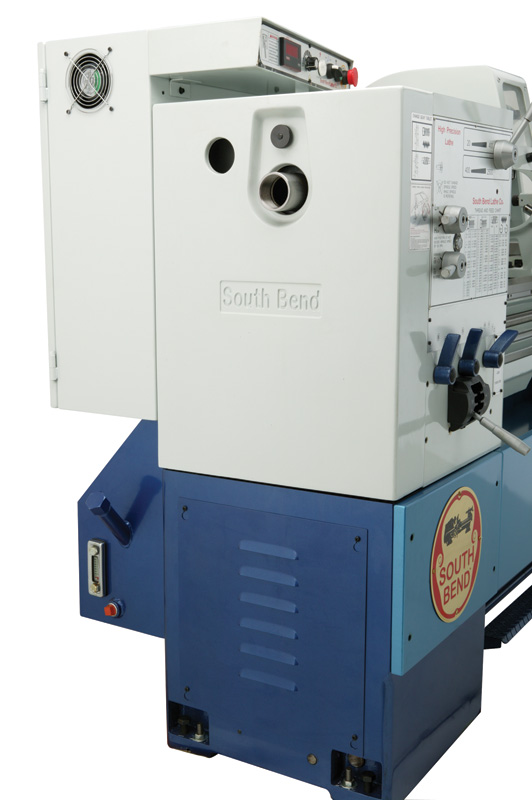

- Allen-Bradley® electrical components

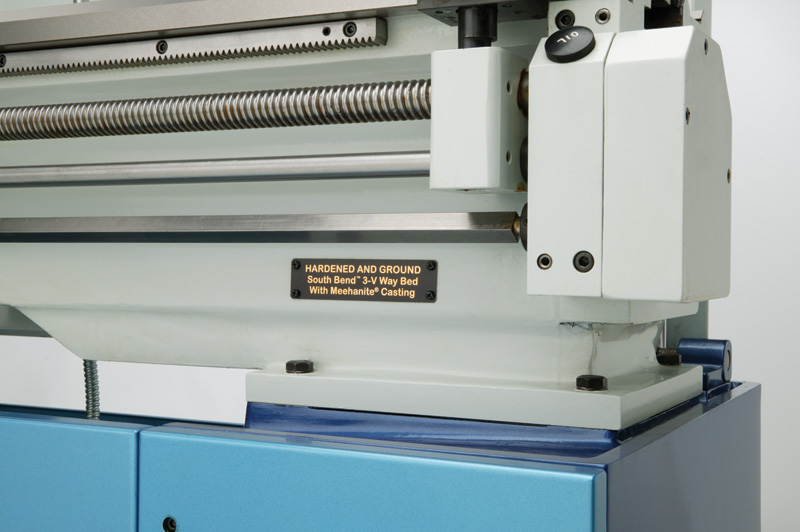

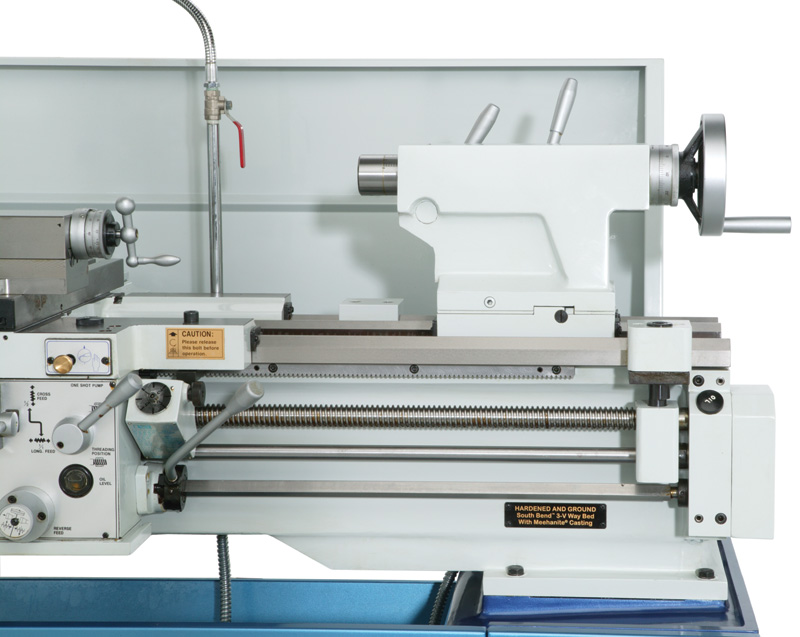

- Meehanite casting, signature South Bend 3 v-bed
- 9" 3 jaw scroll chuck w/ D1-6 back plate
- 10" 4 jaw ind. chuck D1-6
- 12" faceplate
- Safety chuck guard with microswitch shut-off

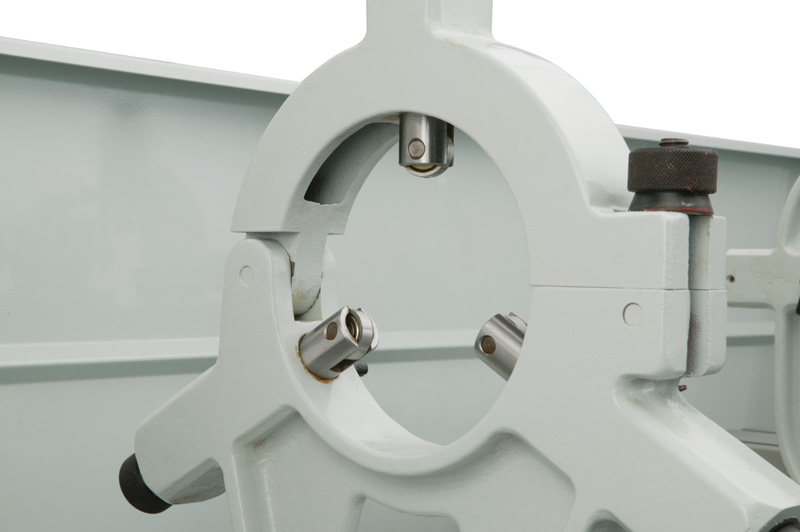

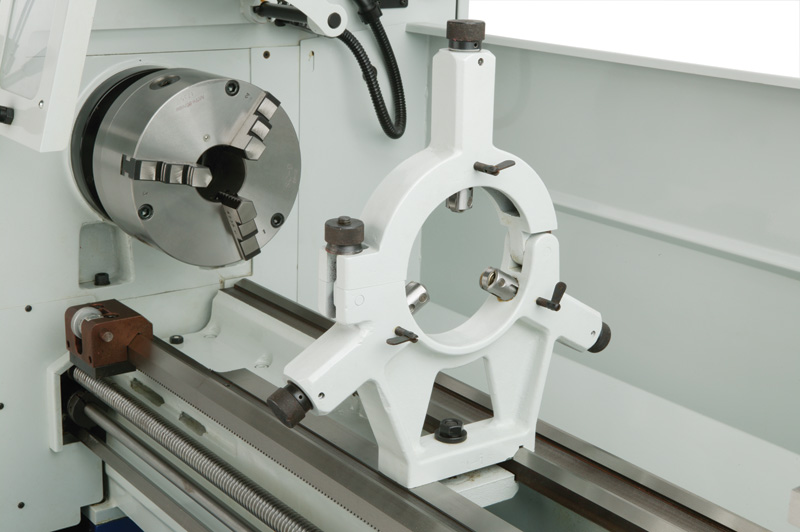

- Steady rest with roller tips
- Follow rest
- 4 way tool post
- Halogen lamp

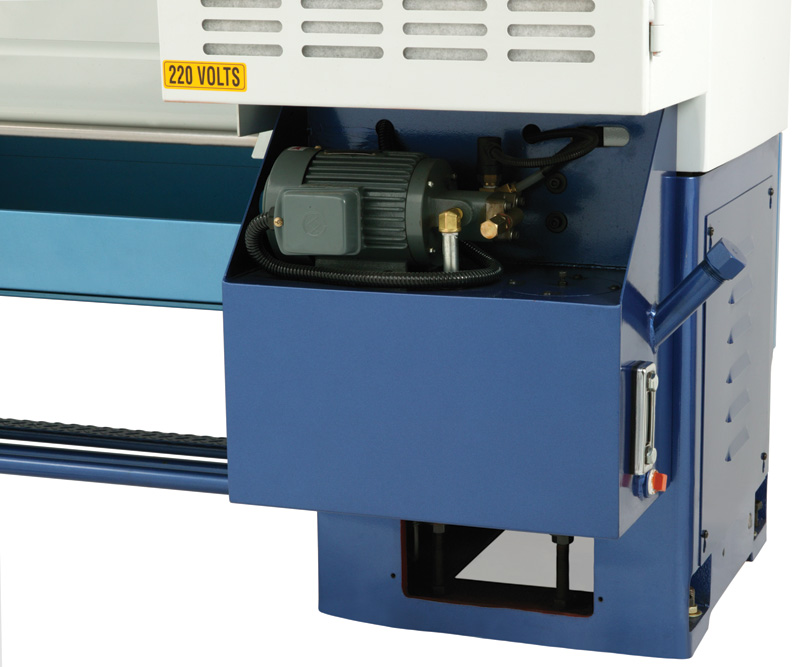

- Complete coolant system
- Micrometer carriage stop
- Spindle sleeve MT6/MT4
- Two morse taper no. 4 dead centers

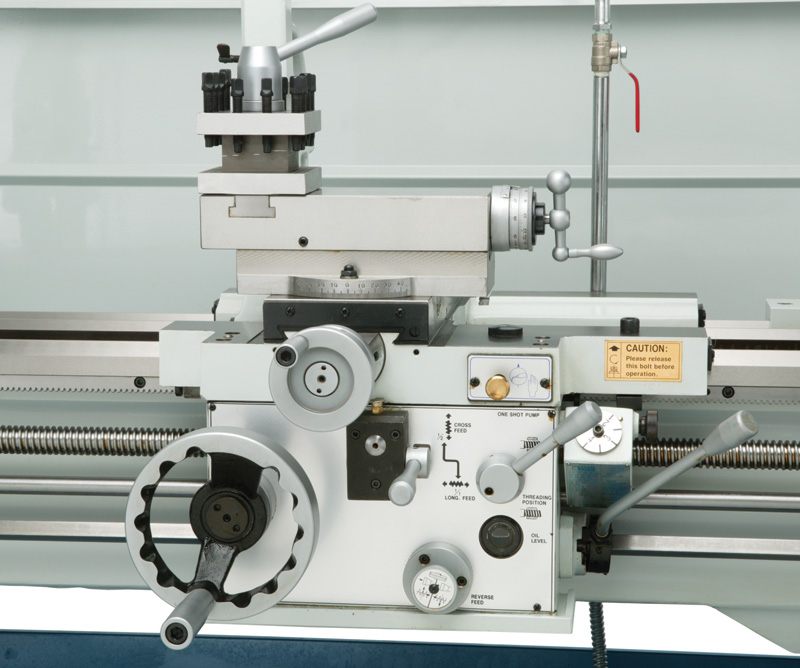

- Threading dial indicator
- Leveling pads - 6 pcs
- NSK or NTN Japanese spindle bearings
- Full-length splash guard
- Front removable sliding chip tray
- Tool set and box
- Operation manual and parts list

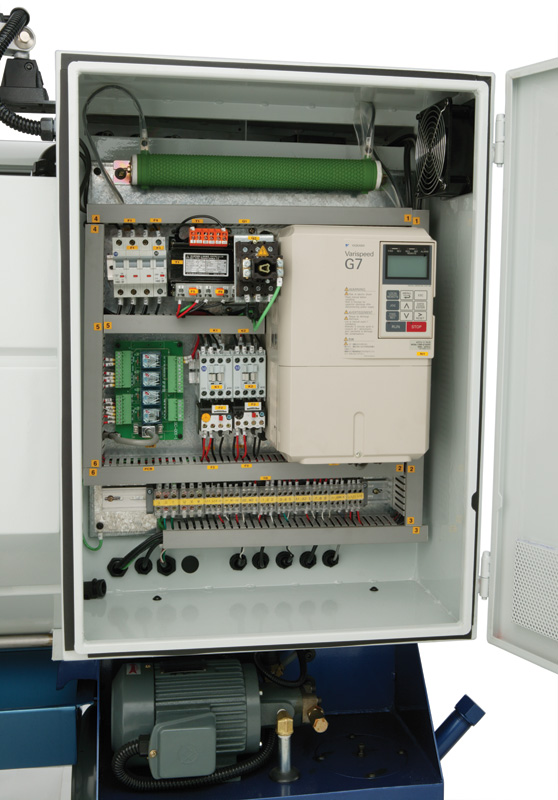

- Yaskawa G7A25P5 inverter
Optional Accessories:
- Taper attachment (unmounted) Model SB1269
- Collet attachment 5-C, quick change (unmounted) Model SB1268
- Backplate D1-6 10" Model SB1267
- Quick change tool post system (see Tooling section)
- Live centers
- Precision 5-C collets - set of 8 (1/8" - 1", in 1/8" increments) Model SB1279
- Precision 5-C collets - set of 15 (1/8" - 1", in 1/16" increments) Model
SB1280
- 5-C collets
- Drill chucks
|
