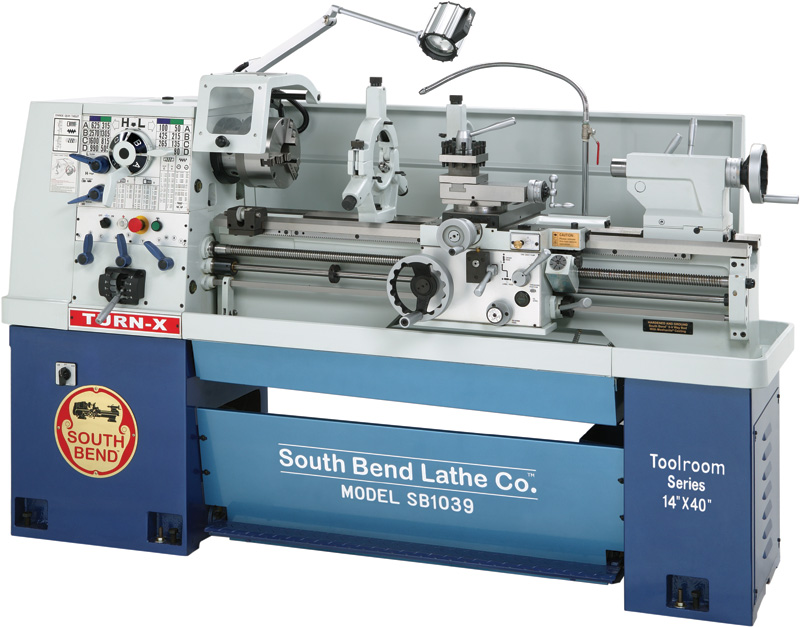

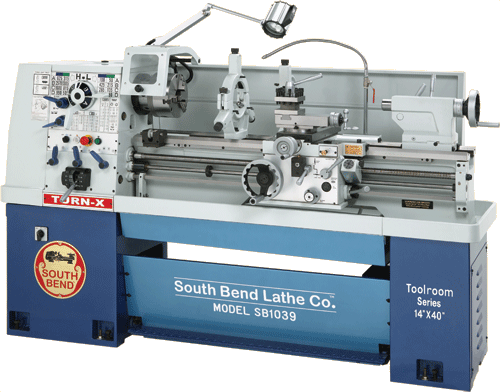

Specifications:
- Swing over bed: 14.17"
- Distance between centers: 40"
- Swing over cross slide: 8.66"
- Swing over gap: 20.94"
- Width of bed: 9"
- Spindle nose to gap: 6.46"
- Cross slide travel: 7"
- Compound slide travel: 4"
- Spindle nose: D1-5 camlock
- Spindle bore: 1.57"
- Spindle taper: MT #5

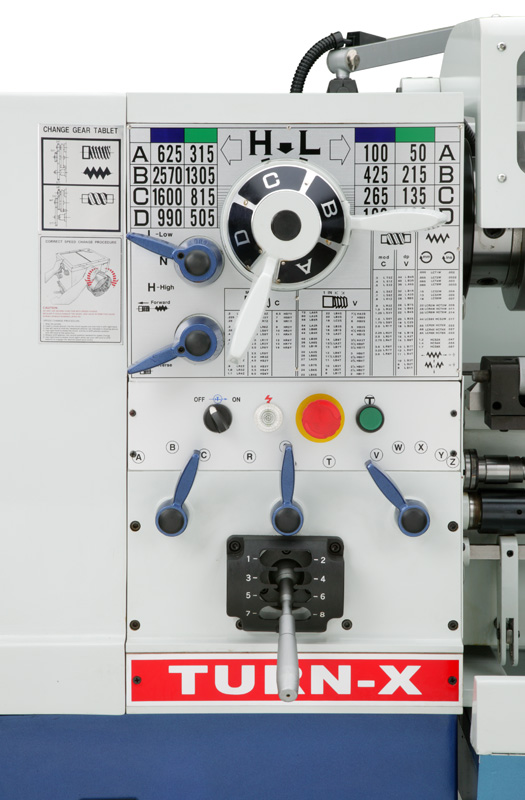

- Spindle speeds: (16) from 50 - 2570 RPM
- Tailstock taper: MT #3
- Tailstock travel: 4.5"
- Tailstock barrel diameter: 1.968"
- Inch thread range: 2 to 72 tpi (45 pitches)
- Metric thread range: 0.2 to 14 mm (39 pitches)
- Modular threads: 0.3 to 3.5 (18 pitches)
- Diametral threads: 8 to 44 (21 pitches)
- Longitudinal feed range: 0.002 to 0.067 IPR
- Cross feed range: 0.001 to 0.034 IPR
- Number of feed selections: 45
- Coolant motor size: 1/8 HP
- Spindle motor size: 5 HP
- Voltage: 220V, 3-phase, 60 cycle
- Machine footprint: 80-3/4" x 19-1/2"
- Approximate shipping weight: 2684 lbs

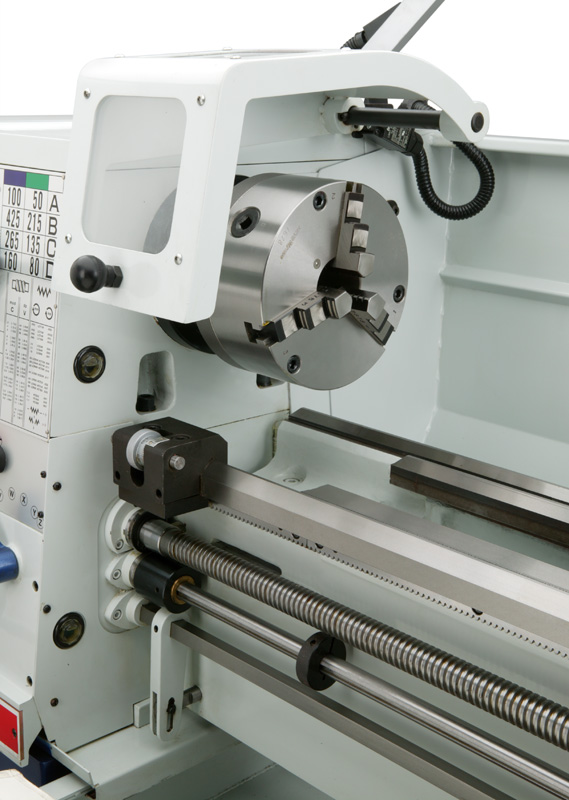

These South Bend EVS lathes are supplied with an adjustable feed rod clutch and stop collar on the feed rod. This is a great safety feature when working close to the chuck. Set the stop collar so the saddle and tool post are positioned at a safe distance from the chuck and tighten the lock screw. Adjust the feed rod clutch to a low setting. If the carriage comes into contact with the collar, the clutch slips, saving your machine from a serious crash.
|

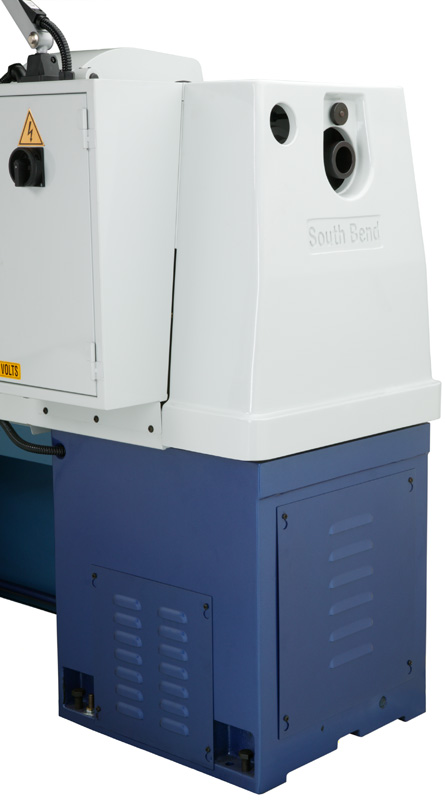

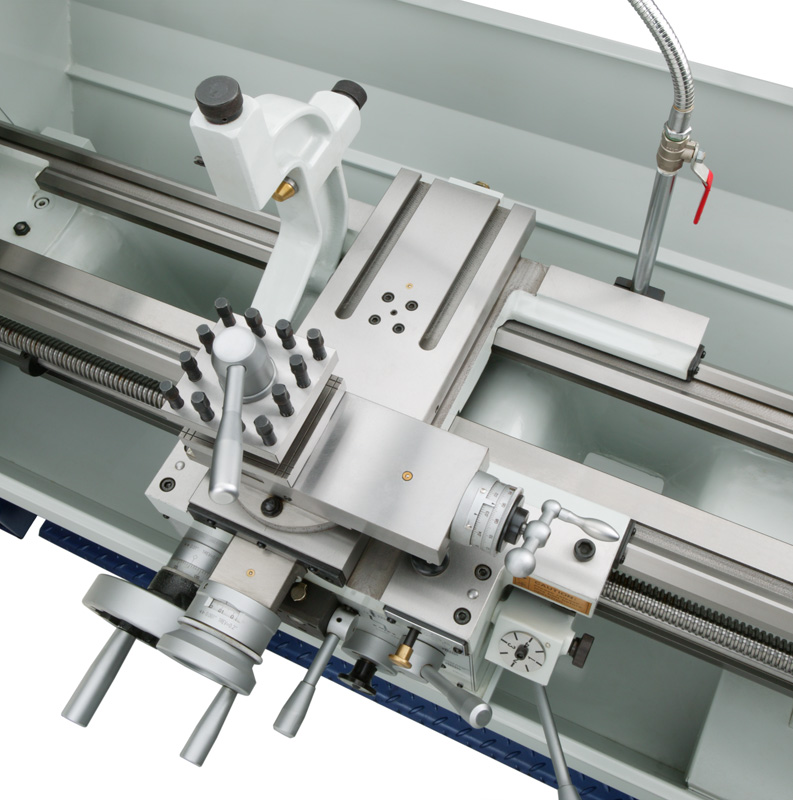

Standard Equipment:

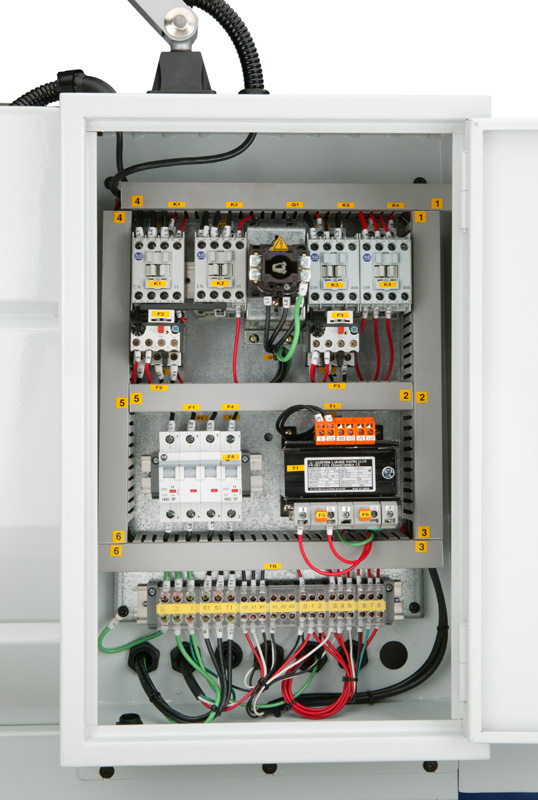

- Allen Bradley electrical components
- Meehanite casting, signature South Bend 3 V-bed
- 8" 3 jaw scroll chuck w/ D1-5 plate
- 10" 4 jaw ind. chuck D1-5
- 12" faceplate D1-5
- Safety chuck guard with microswitch shut-off

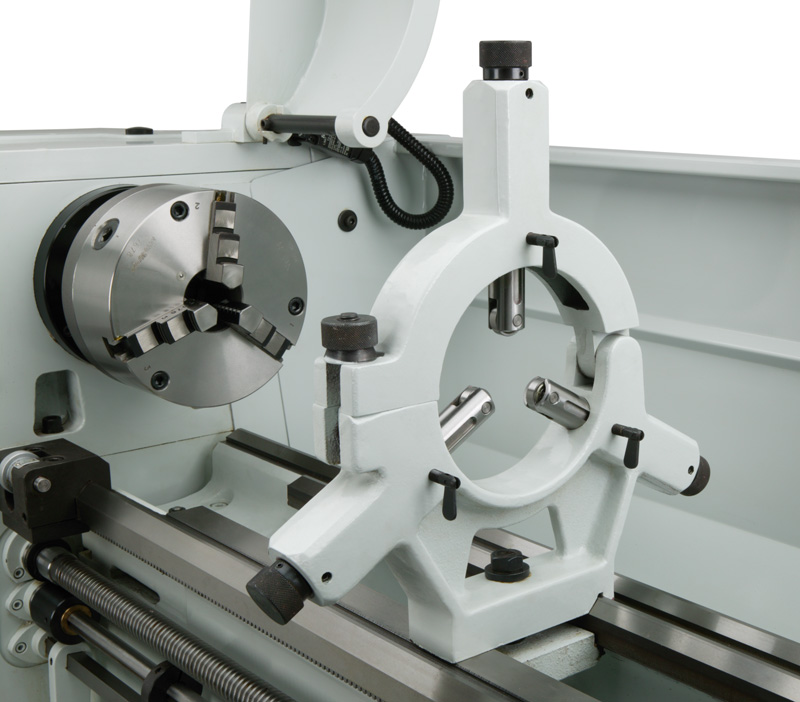

- Steady rest with roller tips
- Follow rest

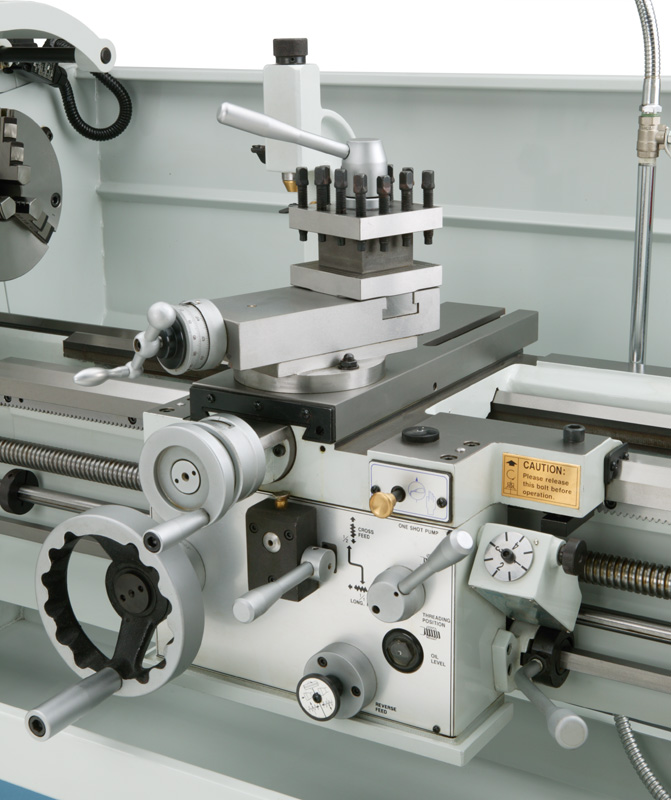

- 4-way tool post
- Halogen lamp
- Complete coolant system
- Micrometer carriage stop
- Spindle sleeve MT#5/MT#3
- Two MT#3 Dead centers
- Threading dial indicator
- Leveling pads - 6 pcs.
- NTN Japanese spindle bearings

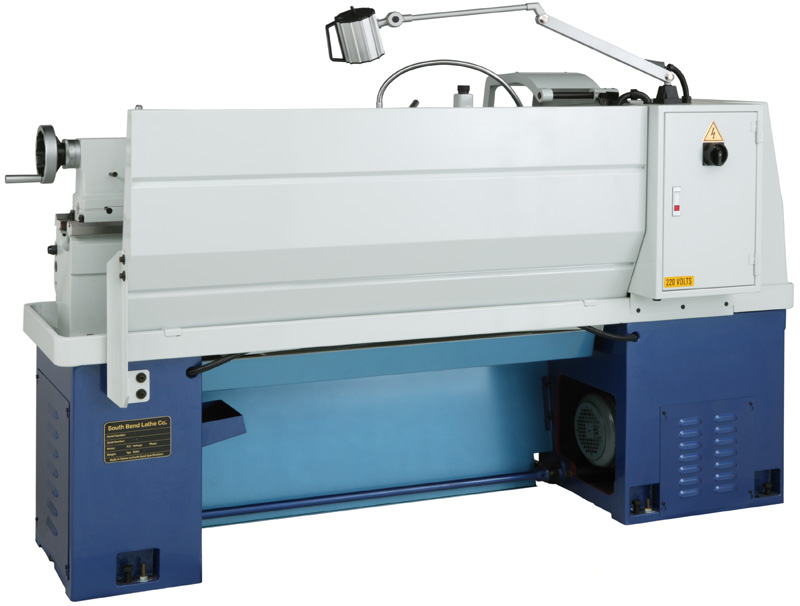

- Full length splash guard
- Front removable sliding chip tray
- Tool set and box
- Operation manual and parts list
Optional Accessories:
- Taper attachment (unmounted) Model SB1269
- Collet attachment 5-C, quick change (unmounted) Model SB1268
- Hi-performance MT#3 live center Model SB1238
- Precision 5-C collets - set of 10 Model SB1279
- MT#3 long nose live center Model SB1242
|
