Home > Bandsaws > 9x12 Horizontal, Variable Speed Metal-cutting Bandsaw with Sliding Vice

Model SB1020

9" x 12" Horizontal, Variable Speed Metal-cutting Bandsaw with Sliding Vice!

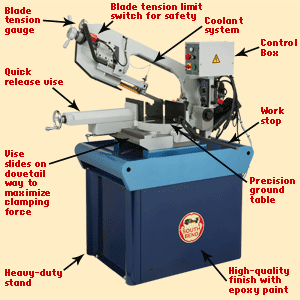

This is South Bend's most deluxe and heavy-duty horizontal bandsaw with industrial type features not found in the market place today! Adjust the swivel base for angle cuts and slide the vise over to maximize the holding power and assure high precision cuts. The variable speed control lets you adjust the exact speed for optimum cutting and blade life in just about any material with just a turn of a dial. You'll also enjoy absolute down pressure control with the adjustable hydraulic down feed! It even has blade coolant nozzles located before and after the cut. What's more, this saw is supplied with an automatic shut-off limit switch that kicks in if the blade breaks or the operator opens the blade guard door! Beautiful South Bend® light gray and two-tone blue color scheme. Check out the rest of the features below and you'll see why this Metal Cutting Bandsaw has earned the South Bend® name!

SB1020 Resources:

Specifications: Required power source: 110V, single-phase, 60Hz Motor: 1-1⁄2 HP, 220V, 3-phase, 1720 RPM Amps: 5.1A Pump motor: 1⁄8 HP, 220V,single-phase, 3450 RPM Drive: Sealed worm gear Blade size: 108-1⁄4" x 1-1⁄16" Blade speed: 92-360 FPM (variable) Miter cutting capacity: 0° to 60° Cutting capacities: 0°, round: 10" 0°, rectangular: 12-3⁄16" x 9" ±45°, round: 7-7⁄8" ±45°, rectangular: 4-3⁄4" x 7" +60°, round: 4-1⁄2" +60°, rectangular: 4-1⁄2" x 6-1⁄8" Floor to table height: 35-5⁄8" Maximum overall dimensions: 60"L x 44-3⁄8"W x 79"H Approximate shipping weight: 805 lbs. Features: Electronic variable blade speeds Swivel mast with degree scale Centralized control panel Heavy-duty all steel, one piece base Adjustable hydraulic down feed (just dial your feed rate) Laterally adjustable vise for cutting steep angles Quick release vise 0° to 60° swivel Built-in coolant system Automatic shut off Adjustable carbide block/ball bearing blade guide system Blade wheels have heavy-duty ball bearings
