Home > Bandsaws > 5 x 6 Horizontal/Vertical Metal-cutting Bandsaw

Model SB1017

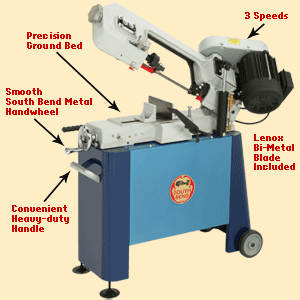

5" x 6" Horizontal/Vertical Metal-cutting Bandsaw

This is by far, the most beautiful and highest quality 4" x 6" bandsaw on the market! South Bend® has upped the ante with features, function and form on one of the most popular sized saws. Distinctive die cast belt cover and knobs with the South Bend® name proudly cast into them start a long list of innovative upgrades to this machine. Hydraulic feed control, heavyduty one-piece stand with storage cabinet and surface ground vise deck are just a few of the many things you'll find that set this South Bend® bandsaw apart from the crowd! Beautiful South Bend® light gray and two-tone blue color scheme with a solid brass nameplate affixed to stand.

SB1017 Resources:

Specifications: Motor: 1⁄2 HP, 110V/220V, single-phase, 1720 RPM Amps: 8.6/4.3 Drive: Belt to sealed worm gear Blade size: 64-1⁄2" x 1⁄2" Blade speed: 80, 120, 200 FPM Miter cutting capacity: 0° to 45° Cutting capacities: 0°, round: 5" 0°, rectangular: 5" x 6" 45°, round: 3" 45°, rectangular: 3" x 4-1⁄2" Maximum overall dimensions: 40-5⁄8"L x 18-1⁄4"W x 56-3⁄4"H (at vertical position) Approximate shipping weight: 170 lbs. Features: Heavy-duty all steel, one-piece base Adjustable hydraulic down feed (just dial your feed rate) Cast iron handwheel w/ chromed handle Die cast South Bend® star knobs Die cast South Bend® belt guard Built-in storage cabinet with door Leveling feet & wheels to ease mobility Table for vertical cuts Work stop for horizontal cuts Satin chromed handle bar
